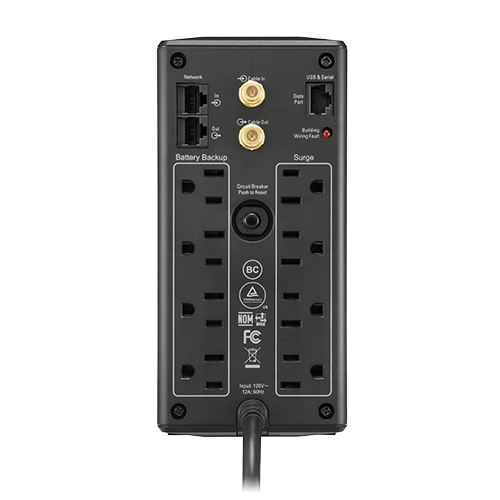

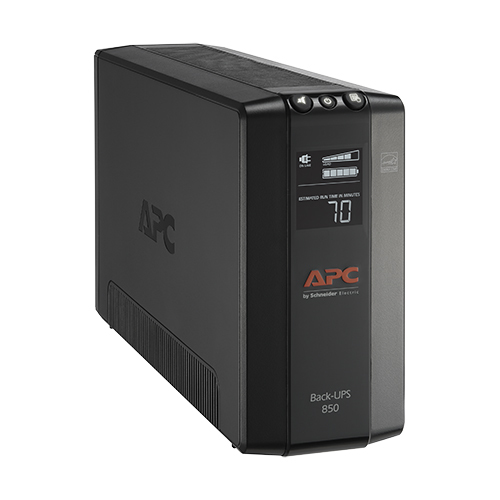

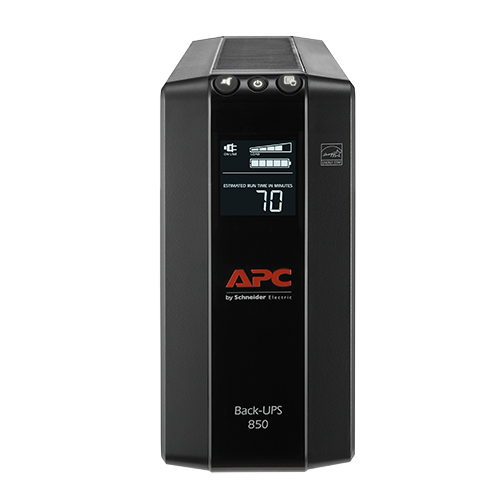

APC Back UPS Pro BX850M, Compact Tower, 850VA, AVR, LCD, 120V

Product Code: APWBX850M
Product Unit: Each
Non-Returnable

  • AVR corrects voltage variations to provide reliable power
  • 1GB network data line protection ensures complete protection of your equipment from surges
  • LCD display provides key UPS status at a glance with load and battery bar graphs
  • Compact tower design allows for convenient use and installation
  • Restore power backup capacity with user-replaceable battery (RBC17 sold separately)

Product Details

General Information

Output Voltage 120 V AC
Number of Battery & Surge Outlets 8
Product Line Back-UPS Pro
Product Color Black
UPS topology Line-Interactive
Output power capacity 0.85 kVA
Output power 510 W
Waveform Sine
Input operation voltage (min) 88 V
Input operation voltage (max) 139 V
Input frequency 60 Hz
Output operation voltage (max) 120 V
Output frequency regulation 60 Hz
Maximum current 12 A
Surge energy rating 1103 J
AC outlet types NEMA 5–15R
AC outlets quantity 8 AC outlet(s)
Ethernet LAN (RJ-45) ports 1
Cabling technology 10/100/1000Base-T(X)
Battery technology Sealed Lead Acid (VRLA)
Battery life (max) 5 year(s)
Battery recharge time 12 h
Form factor Tower
Product colour Black
Cable length 1.83 m
Display type LCD
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 45 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Compliance certificates RoHS
Certification California (CEC) Battery Charger, FCC Part 15 Class B, UL 1778
Sustainability certificates ENERGY STAR
Width 91 mm
Depth 310 mm
Height 190 mm
Weight 6.8 kg
Package width 142 mm
Package depth 442 mm
Package height 253 mm
Package weight 7.6 kg

Product Information

Brand APC by Schneider Electric
Type UPS Power Supplies

Description

Audible alarms Provides notification of changing utility power and UPS power conditions Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Battery replacement without tools Enables fast battery replacement, lowering Mean Time to Repair (MTTR). Boost Automatic Voltage Regulation (AVR) Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery. Building Wiring Fault Indicator This LED informs users of potentially dangerous wiring problems in the wall circuit. Cold-start capable Provides temporary battery power when the utility power is out. Dataline surge protection Provides protection of connected equipment from power surges on the data lines. Disconnected battery notification Warns when a battery is not available to provide backup power. Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms. Lifetime data recovery warranty Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit. Resettable circuit breaker Easy recovery from overloads; no need to replace a fuse. Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Transformer Block Spacing Connect bulky transformer block plugs without covering up other outlets. USB connectivity Provides management of the UPS via a USB port (not available on all models). User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
