StarTech.com 2 Port High Resolution USB DVI Dual Link KVM Switch with Audio - 2 Computer(s) - 1 Local User(s) - WQUXGA - 3840 x 2400 - 6 x USB - 3 x DVI - Desktop - TAA Compliant
- Designed for high-resolution applications: 2560x1600 @ 60Hz: Higher resolutions (3840 x 2400) are supported at lower refresh rates

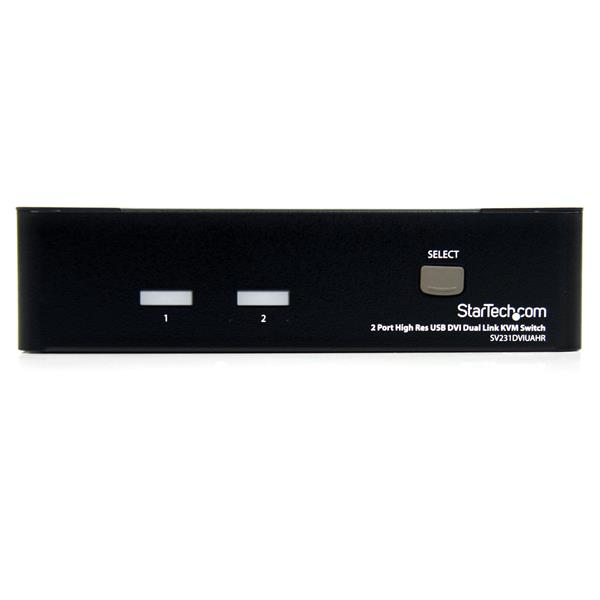

- Hot-key or front panel push-button computer selection
- Integrated USB 2.0 hub allows you to share up to three high-speed USB devices between computers
- All metal chassis for long-term durability
- Compatible with all USB-supported Operating Systems
- HDCP Compliant
Product Details
General Information
| USB | Yes |
| Number of USB Ports | 6 |
| Number of Local Users Supported | 1 |
| Number of Computers Supported | 2 |
| Graphic Mode | WQUXGA |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |

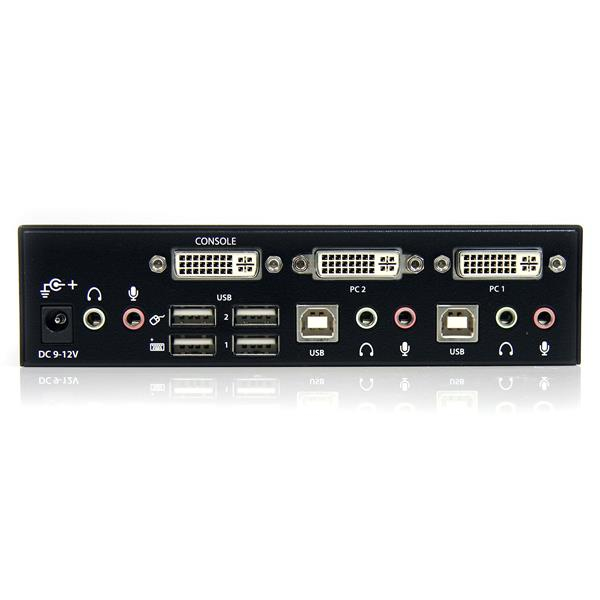

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Console USB ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| USB connector type | USB Type-A |
| USB version | 2.0 |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| DC-in jack | Yes |
| Maximum resolution | 2560 x 1600 pixels |
| Daisy chain | No |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| Hot keys | Yes |
| Certification | CE, FCC |
| On Screen Display (OSD) | No |
| Input voltage | 110-240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
| Compatible power plug types | EU, UK, US |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 100 mm |
| Depth | 159 mm |
| Height | 40 mm |
| Weight | 640 g |
| Package width | 186 mm |
| Package depth | 250 mm |
| Package height | 101 mm |
| Package weight | 1.11 kg |
Product Information
| Brand | StarTech |
| Type | KVM Console |
Description
The SV231DVIUAHR 2-Port High Resolution Dual-Link DVI USB KVM Switch provides simple, yet comprehensive control of 2 directly-connected computers, as well as audio switching capability and support for high resolution applications (supports resolutions beyond 1080p: 2560x1600 @ 60Hz, up to 3840 x 2400 at lower refresh rates), offering a superior KVM switching solution that integrates perfectly into demanding imaging, medical, and multimedia environments. This 2-port DVI USB KVM Switch is compatible with all USB-supported operating systems, and features a built-in USB 2.0 hub that allows you to share additional (up to 2) high speed USB devices between computers. Backed by a StarTech.com 3-year warranty and free lifetime technical support. The StarTech.com Advantage - Dual Link DVI interface supports high resolutions of up to 2560x1600 allowing you to take full advantage of your graphics card capabilities - USB 2.0 hub provides the convenience of sharing USB peripherals (external hard drive, webcam, etc.) between computers and saves the cost of purchasing duplicate peripherals - Rugged solid steel features durable design for long-lasting performance, even in harsh environments
